Range 4 – 5″ Graduation 0.001″ Accuracy 0.00025″

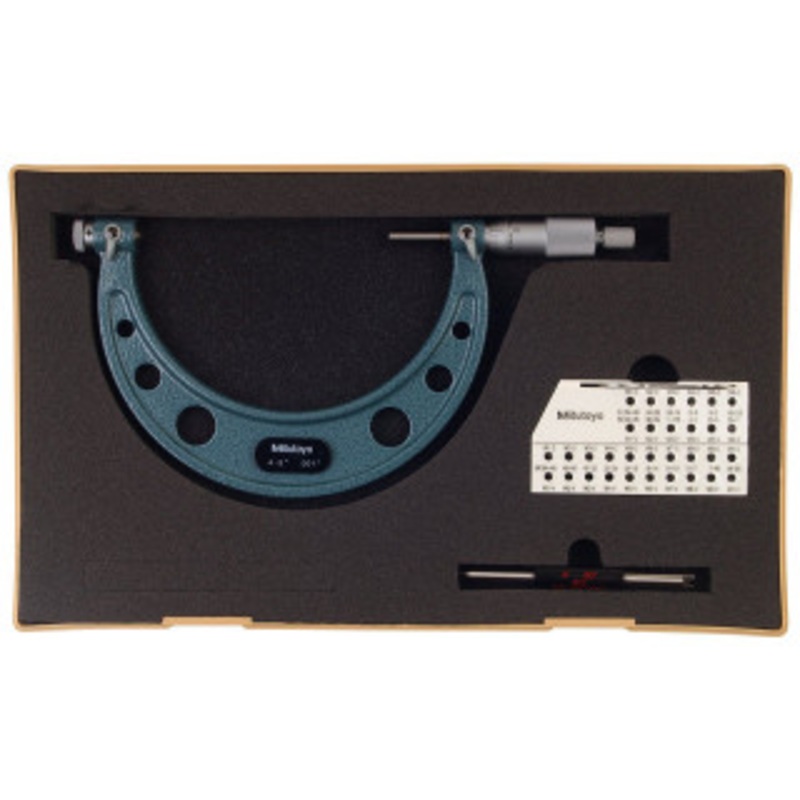

Mitutoyo Screw Thread Micrometer, 4-5″ with Anvil Set (126-800) – 126-905

Screw Thread Micrometer – Series 126 – Interchangeable Anvil-Spindle Tip Type

Features:

• IP65 water/dust protection (Series 326)
• 60 degree or 55 degree V-anvil and conical spindle(interchangeable) are optional,which are made of high-grade steel,hardened and precision ground
• With Ratchet Stop for constant force
• With SPC output (Series 326)
• With a standard bar except 0-25mm / 0-1 in model
• Suplied in fitted plastic case

Technical Data:

• Resolution*: 0.001mm or .00005″/0.001mm
• Graduation**: 0.01mm or .001″
• Spindle feed error: 3m/.00012
• Display*: LCD
• Battery*: SR44 (1 pc.), 938882
• Battery life*: Approx. 1.2 years under normal use
• Dust/Water protection level*: IP65

* Digital models
** Analog models

Anvil Set (126-800) Contains:

Item Number Threads per Inch Pitch (mm) 126-801 64-48 (M1) 0.4 – 0.5 126-802 44-28 (M2) 0.6 – 0.9 126-803 24-14 (M3) 1 – 1.75 126-804 13-9 (M4) 2 – 3 126-805 8-5 (M5) 3.5 – 5 126-806 4.5 – 3.5 (M6) 5.5 – 7

See all Mitutoyo Screw Thread Micrometers, Series 326, 126 – Interchangeable Anvil-Spindle Tip Type
