Accupro 0.02 Diam, 0.06 LOC, 2 Flute Solid Carbide Ball End Mill Uncoated, Single End, 1-1/2 OAL, 1/8 Shank Diam, Spiral Flute 6500717 – 64536444

Accupro 0.02 Diam, 0.06 LOC, 2 Flute Solid Carbide Ball End Mill Uncoated, Single End, 1-1/2 OAL, 1/8 Shank Diam, Spiral Flute 6500717 – 64536444

$35.22 $44.03
Review

Accupro 0.02" Diam, 0.06" LOC, 2 Flute Solid Carbide Ball End Mill Uncoated, Single End, 1-1/2" OAL, 1/8" Shank Diam, Spiral FluteManufacturer Part #: 6500717S/N: 64536444UNSPSC: 27112803(Minimum Order Quantity=1, Package Quantity=1)Specifications:Mill Dia

SKU: 64536444 Category:
Description Reviews (0)

Accupro 0.02″ Diam, 0.06″ LOC, 2 Flute Solid Carbide Ball End Mill Uncoated, Single End, 1-1/2″ OAL, 1/8″ Shank Diam, Spiral Flute

Manufacturer Part #: 6500717

S/N: 64536444

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch) 0.0200 Number Of Flutes 2 End Mill Material Solid Carbide Coating/Finish Bright/Uncoated Overall Length (Inch) 1-1/2 Shank Diameter (Inch) 1/8 Extended Reach Yes Variable Helix No Variable Index No Helix Angle 30 Chipbreaker No Length Of Cut Range (Decimal Inch) 0.0500 to 0.1000 Neck Length (Decimal Inch) 0.1700 Mill Diameter Tolerance +0.0000 to -0.0010 in Shank Diameter Tolerance -0.0001 to -0.0003 in Material Grade Micrograin Flute Direction Right Hand Cutting Direction Right Hand Series Miniature Flute Type Spiral Centercutting Yes Single Or Double End Single Length Of Cut (Decimal Inch – 4 Decimals) 0.0600

Reviews

There are no reviews yet.

Be the first to review “Accupro 0.02 Diam, 0.06 LOC, 2 Flute Solid Carbide Ball End Mill Uncoated, Single End, 1-1/2 OAL, 1/8 Shank Diam, Spiral Flute 6500717 – 64536444”

Your email address will not be published. Required fields are marked *

Related products

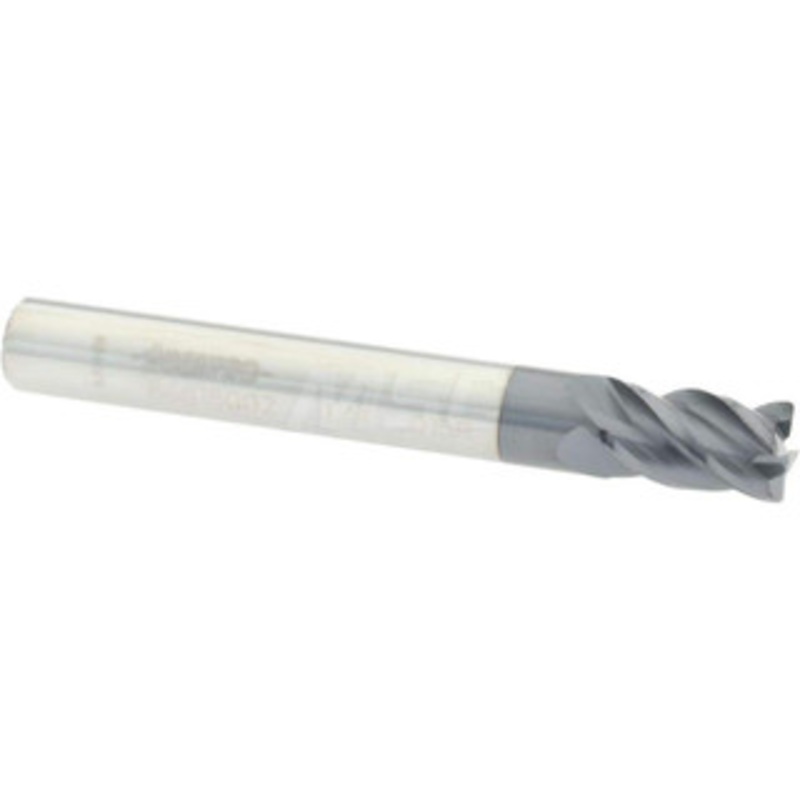

Accupro 1/4 Diam 4 Flute Solid Carbide 0.015 Corner Radius End Mill AlTiN Finish, 2 OAL, 3/8 LOC, 1/4 Shank Diam, 40 Helix, RH Cut, RH Flute, Centercutting 12182811 – 86818002 Sale

Accupro 1/4 Diam 4 Flute Solid Carbide 0.015 Corner Radius End Mill AlTiN Finish, 2 OAL, 3/8 LOC, 1/4 Shank Diam, 40 Helix, RH Cut, RH Flute, Centercutting 12182811 – 86818002

$24.86 $31.08
Accupro 3/8 Diam 5 Flute Solid Carbide 0.02 Corner Radius End Mill AlTiCrN Finish, 4 OAL, 1/2 LOC, 3/8 Shank Diam, 38 Helix, RH Cut, RH Flute, Centercutting, 1-1/8 Extended Reach 6503130 – 42515841 Sale

Accupro 3/8 Diam 5 Flute Solid Carbide 0.02 Corner Radius End Mill AlTiCrN Finish, 4 OAL, 1/2 LOC, 3/8 Shank Diam, 38 Helix, RH Cut, RH Flute, Centercutting, 1-1/8 Extended Reach 6503130 – 42515841

$41.82 $83.63

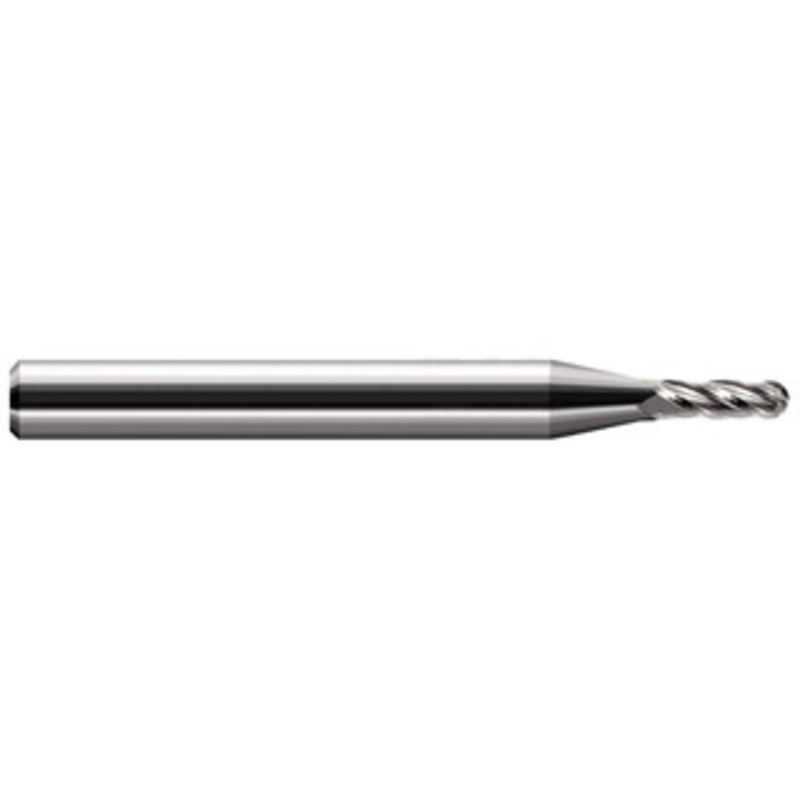

Harvey Tool 1/32 Diam, 3/32 LOC, 2 Flute Solid Carbide Ball End Mill Uncoated Finish, Single End, 1-1/2 OAL, 1/8 Shank Diam, Centercutting 74031 – 60223690 Sale

Harvey Tool 1/32 Diam, 3/32 LOC, 2 Flute Solid Carbide Ball End Mill Uncoated Finish, Single End, 1-1/2 OAL, 1/8 Shank Diam, Centercutting 74031 – 60223690

$33.22 $41.52

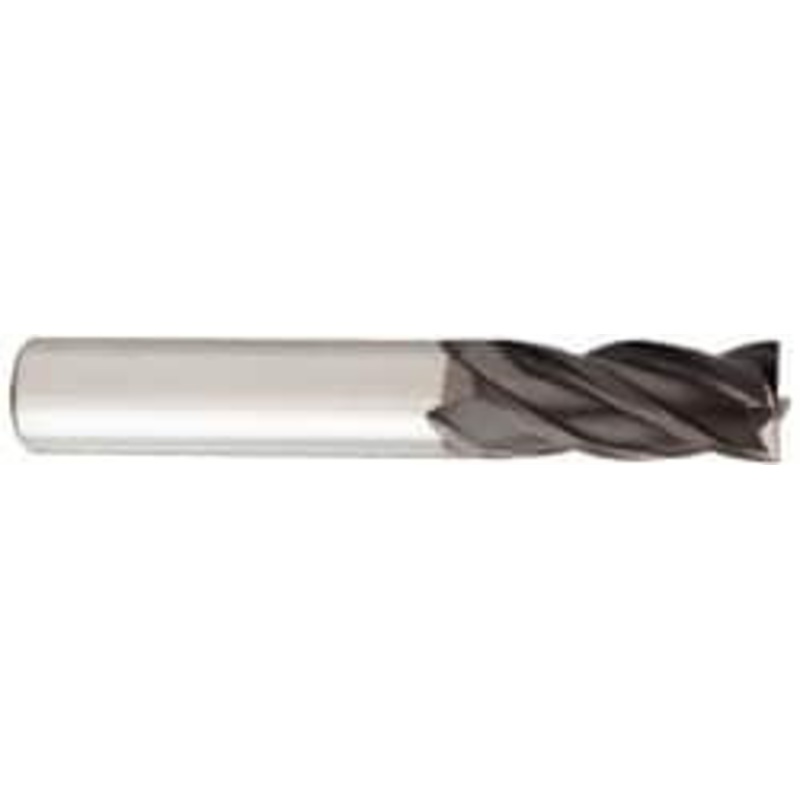

OSG 11mm Diam, 25mm LOC, 4 Flute Solid Carbide Ball End Mill TiAlN Finish, Single End, 70mm OAL, 11mm Shank Diam, Spiral Flute HP441-4331-BN – 44857233 Sale
